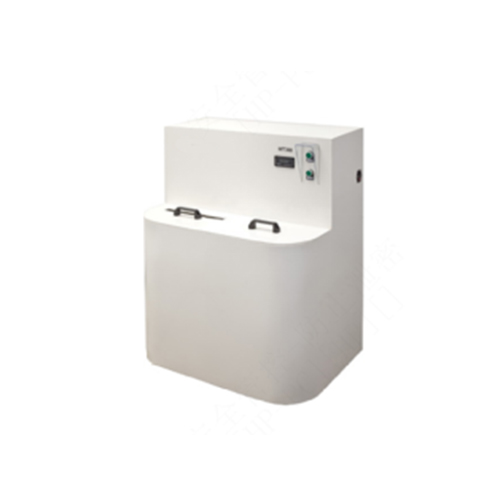

AF036 Circuit Board Water Treatment Equipment Didactic Equipment Vocational Training Equipment PCB Lab Equipment
Function: Used for the treatment of cleaning wastewater during the circuit board production process. It is the only laboratory PCB cleaning wastewater treatment equipment in China, and has applied for a national patent. It can be used in conjunction with an etching machine, a developer, a film stripper, and a board brush machine, or as an independent device.
Technical parameters:
* Water quality standard: National Class I emission standard, SGS certified
* Patented design, patent certificate obtained
* The equipment is equipped with a transfer pump, honeycomb filter, activated carbon filter, ion exchange resin filter
* It has ion exchange resin filter element regeneration and backwashing function and device
* Harmful metal ion precipitation method: flocculant and heavy metal ion capture agent precipitation method, and solid-liquid separation by filtration method
* Trace heavy metal ion treatment method: ion exchange resin filter element treatment
* Harmful organic matter absorption method: activated carbon filter element absorption method
* The equipment has acid-base neutralization addition function to control the pH value of drainage
* The equipment is equipped with a circuit board spray cleaning sink to clean the residual liquid on the circuit board surface
* Water treatment capacity: ≥20 liters/h
* Filter element life: 40 tons
* Power supply: 220VAC/50Hz
* Power: 200W
* Overall length × width × height: 1400 mm *1100 mm *1500 mm
* Weight: 90kg
